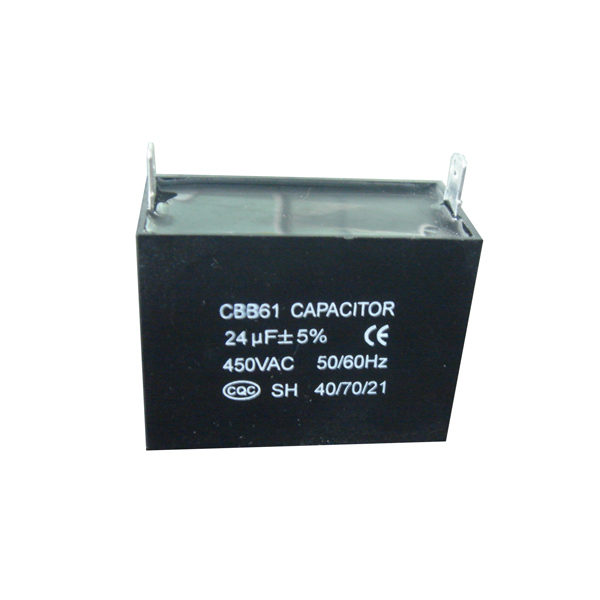

CBB61 Features
1. Rectangle flame retardant plastic shell,epoxy resin sealed.
2. Small size, light weight, convenient for installation.
3. Low dissipation factor, high insulation resistance, good self-healing,stable performance,good ability of resisting impact current and overload.
4. Suitable for air conditioner, electric fan, exhaust fan, electric pump, and electric sewing machine,etc and beneficial to the starting and running of AC motor.
CBB61 Technial Data
- Ambient Temperature
- Rated Voltage
- Capacitance Range
- Test Voltage
- Capacitance Tolerance
- Dissipation Factor
- Operating Frequency
- Executing Standard
- -40 - +85℃
- 250 - 500VAC
- 0.5 - 30μF
- T-T:1.75Un/2s T-C:2200VAC/2s
- ±5%,±10%
- tg≤0.002(100Hz,20℃)
- 50/60HZ
- IEC60652,UL810,EN60252,VDE0560-8,GB/T3667.1-2005
CBB61 Outline Dimensions
| Capacitance Range | 250 - 300VAC | 370 - 400VAC | 440 - 450VAC | ||||
| D(mm) | H(mm) | D(mm) | H(mm) | D(mm) | H(mm) | ||
| 1 - 100μF | 30 - 50 | 50 - 125 | 30 - 60 | 50 - 125 | 30 - 65 | 50 - 150 | |
